TalkPerfect duplex window intercom system – Kit 1

£781.00 exl VAT

The TalkPerfect duplex window two way intercom system is designed to improve communication at fixed screen security counters.

  • Full duplex (two-way, dual-way) communication
  • Feedback and echo suppression built in
  • Multiple microphone and speaker options
  • Simple integration to CLD1 loop amplifier
  • Compact design
  • All connections are on one panel for ease of installation
  • Fully adjustable gain on both channels
  • Low cost of ownership
  • 5 year warranty (NOTE accessories only carry a 1 year warranty)

Description

The TalkPerfect duplex window intercom system is designed to improve communication at fixed screen security counters. Based on proven, reliable and patented technology, the full duplex (two way) system amplifies speech for both customer and staff whist minimising background noise and actively reducing acoustic feedback.

The intercom’s modular design, contemporary styling and wide range of accessories means the TalkPerfect DX system is always easy to install and never looks out of place with the aesthetics of the building, whether it is for a retrofit or new build application.

The TalkPerfect duplex intercom speech transfer not only comprises a full duplex intercom system, reinforcing communications from staff to customer and customer to staff with high quality amplified sound, but is also simple to install, does not require an external computer of software to set up, and once installed it is designed to function without further intervention.

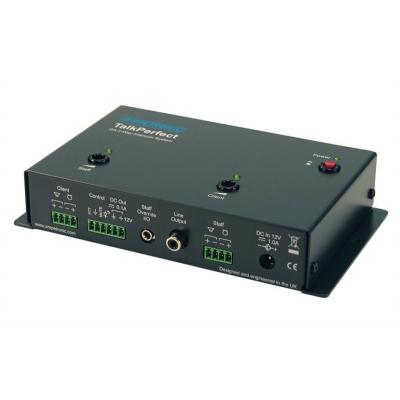

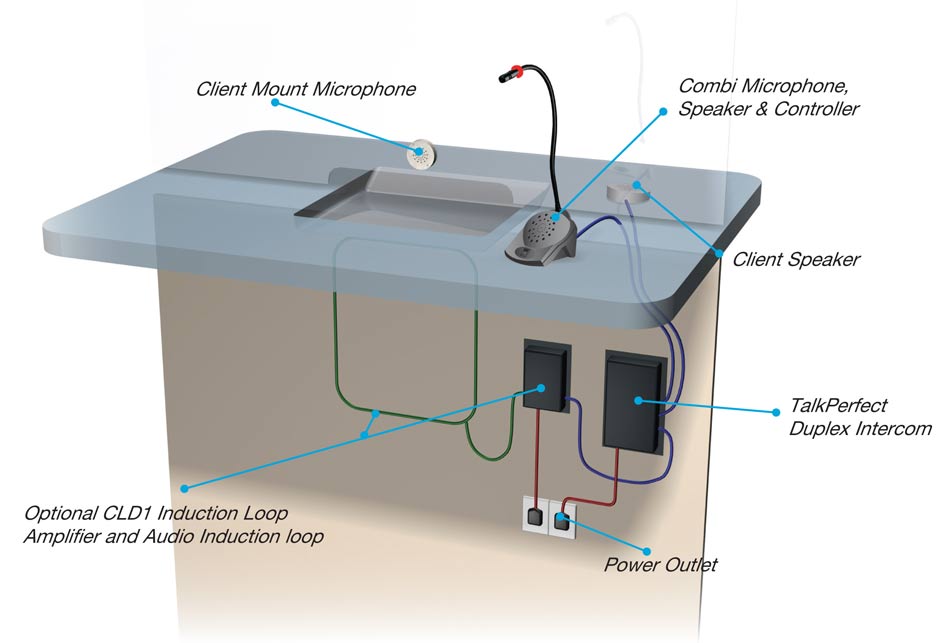

The Ampetronic TalkPerfect amplifier is typically installed below counter in conjunction with a CLD 1 Induction Loop, providing a fully integrated intercom and control module, with a host of features for integration and versatile use.

CE marked to all relevant safety and EMC standards.

Key Features

  • Full duplex (two-way, dual-way) communication
  • Feedback and echo suppression built in
  • Multiple microphone and speaker options
  • Simple integration to CLD1 loop amplifier
  • Compact design
  • All connections are on one panel for ease of installation
  • Fully adjustable gain on both channels
  • Low cost of ownership
  • 5 year warranty (NOTE accessories only carry a 1 year warranty)

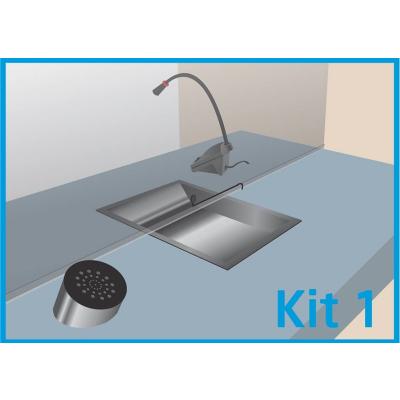

System Includes

1 x Client side POD Speaker

1 x Glass Mount Mic

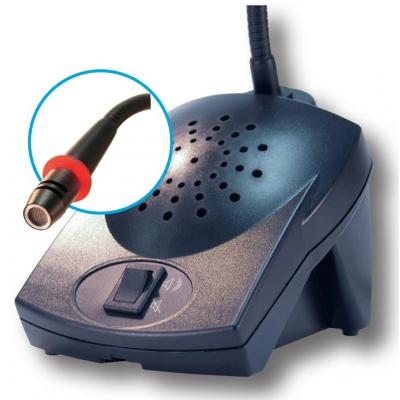

1 x Staff side Combination Desktop Speaker & Gooseneck Mic

optional CLD1 Induction Loop Amplifer & Coil

Technical Specification

Mic inputs Suitable for unbalanced electret capsules
DC bias voltage: 6V through 1kΩ
Suitable source: 1kΩ
Input impedance: 8kΩ
Input noise level: -124dBu
Speaker O/Ps
Bandwidth: 20Hz – 10kHz.
Min load: 4Ω, Max output level:+14dBu
Control Port LED output connects to combi mic speaker to indicate if system is active i.e. Mute turns LED off
PTT & Mute are active low
+12Vdc for external module supply. 100mA fused
Staff Override Unbalanced Line I/O using 3.5mm jack socket
Input = Tip, Output = Ring
Input sensitivity -10dBu with 1kΩ source
Output level max: +4dBu, typical -10dBu
Output Z: 220Ω
Line Output Unbalanced phono socket for connection to CLD1 line input – cable supplied
Voltage (dc) 12Vdc, Quiescent: 170mA 2W, Maximum: 1.0A 12W

Physical

Dimensions & Weight width 200mm, depth 110mm, height 44mm, 475g
Temperature Range -10 to +45ºC, 20 to 90% humidity

Accessories

Microphones POD Microphone, Combi Unit, Glass Mount Microphone, Audio Tray
Speakers POD Speaker, Combi Unit, Audio Tray

Documentation

UP37002-11-Talkperfect-options

UP17001-9-TalkPerfect-handbook

UP37008-2-TalkPerfect-Accessories-Datasheet

UP17004-6-Talkperfect-Datasheet-1

UP27006-6-Talkperfect-installation-guide
