ML1/K Counter Hearing Loop Kit


£68.00

The ML1/K Counter Hearing Loop Kit is a cost effective, easy to install solution for applications requiring restricted or small area coverage.

4971 in stock

SKU: ML1/K Category:

Description

The ML1/K Counter Hearing Loop Kit is a cost effective solution for applications requiring restricted or small area coverage. This includes banks, post offices, small meeting rooms, reception desks and ticket booths.

It is a complete kit with no additional equipment required and requires no specialist install experience.

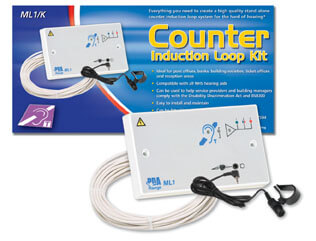

The ML1/K Counter Hearing Loop Kit includes:

  • ML1 wall-mounting double gang loop amplifier
  • AMT microphone
  • TX2 Counter loop cable
  • Loop ID Sticker



Key Features

  • Requires no specialist audio install experience
  • Complies with DDA requirements BS8300
  • Perfect for counter/desk hearing loop applications
  • 1.2M2 Coverage
  • Fits into double gang electrical back box
  • Complete kit provided. Nothing else required.
  • Comprises: Loop amp, microphone, loop cable and loop ID sticker.
  • 5 Year warranty
  • Excellent audio performance Made in UK



Technical Specification

Type Wall-mounting (requires fixed mains wiring and a 25mm back box).
Coverage 1.2m2 approx.
Mains supply The general requirement for the 230V a.c. Mains supply to the ML1 is fixed wiring, using 3 core cables of not less than 1mm2 fed from an isolating switched fused spur, fused at 3A.
Max battery size and type n/a.
Auxiliary inputs 1 x 3.5mm remote mic. socket; 1 x Line/Outreach socket (max. 3 Outreach plates per ML1).
Indicators Input level; power on; loop drive meter.
Controls Mic. input level, line input level; loop drive,
Product dimensions (mm) W 143 x H 83 x D 32mml.
Construction & finish Plastic.
IP Rating IP20.
Weight 300g (amplifier only).



Documentation

CTEC_-_ML1_K_Datasheet_2022-01-11
