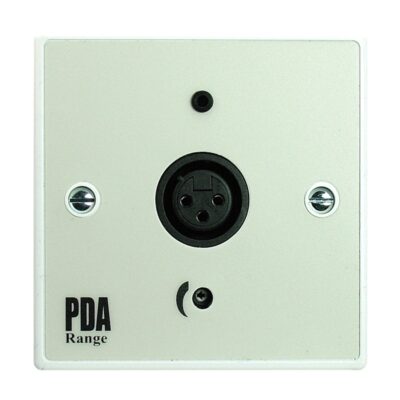

APXL XLR 3 Pin Line Level Outreach Plate


£28.00

The APXL XLR 3 Pin Line Level Outreach Plate accepts stereo phono line-level input signals from sources such as TVs.

It is also compatible with the PDA102, 200E, Pro-Range and ML1 Hearing loop amplifiers along with any third-party audio or induction loop amplifier using an APV 24V 250mA power supply.

5000 in stock

SKU: APXL Categories: ,

Description

The APXL XLR 3 Pin Line Level Outreach Plate accepts stereo phono line-level input signals from sources such as TVs.



Key Features

  • Accepts stereo phono line-level input signals from sources such as TVs.
  • Part of C-TEC’s patented ‘Outreach Plate’ audio input extension system.
  • Compatible with C-TEC’s entire range of amplifiers – PDA102, 200E, Pro-Range and ML1 Hearing loop amplifiers.
  • Can connect to any third-party audio or induction loop amplifier using an APV 24V 250mA power supply.
  • Mounts on a 25mm standard UK single gang back box.



Technical Specification

Line inputs: Balanced/unbalanced, 0.775Vrms (0dBu), 10kohms.

Line outputs: Balanced, 0.775Vrms (0dBu) + 6dB (overload), less than 100 ohms.

Response: 90Hz to 20kHz. Insertion loss/gain: Less than +/- 0.05dB.

‘Insertion signal to noise ratio’: ’79dB THD + noise: 0.07%’.



More Information

The Outreach Plate audio input extension system comprises a range of wall, ceiling and desk mountable plates specifically designed to increase the audio input capability of any audio system. Covering the most common variants of audio connectors, they work by mixing the signals from various audio input sources into a single balanced line level input on a compatible amplifier.

Each input plate features a built-in mixer, preamp, input level control and balanced output.

Typically, up to 10 Outreach plates (any mix) can be daisy-chained to one balanced line level connection.  Cable lengths up to 100m are easily achievable using standard two-pair audio cable (i.e. Belden 8723).

Each plate requires four wires; two balanced line (Line/A +, Line/A –), one ground (GND) and one power connection (V+ = 12-32V d.c.).

Most of C-TEC’s PDA Range induction loop amplifiers are fitted with an Outreach connection socket as standard. For audio systems that do not have an Outreach socket, straightforward network connection can be achieved using an ‘APV’ 24V 250mA d.c. regulated power supply and an ‘APXO’ 3 pin XLR balanced line output plate.
