Small Room Hearing Loop System
PDA103C Wall-Mounting Counter Hearing Loop System - box

PDA103R Small Room Hearing Loop System 50m2

£165.00 exl VAT

The PDA103R Small Room Hearing Loop System is ideal for small room applications such as meeting rooms or classrooms up to 50m2 (7m x 7m).  Designed where equipment needs be mounted above suspended ceilings, etc.

  • PDA103 amplifier includes a 3.5mm microphone input, a line level input and an ‘outreach’ socket
  • Metal compensation control helps improve intelligibility in rooms with high metal content
  • Adjustable mic, line level and ‘outreach’ controls.
  • Drive (level) control allows the amplifier’s output stage to be set-up to suit the exact characteristics of the application.
  • State-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks
  • Limit, Peak, Loop Fault and Power On indicators
  • Designed to be wall-mounted using the keyholes provided
  • Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed
  • 5 year standard warranty

In stock

SKU: PDA103R Category:

Description

The PDA103R Small Room Hearing Loop System is ideal for small room applications such as meeting rooms or classrooms up to 50m2 (7m x 7m).  Designed where equipment needs be mounted above suspended ceilings, etc.

The APM microphone supplied can be used for ceilings up to 2.5 meters and positioned centrally.  For ceilings higher than this, you would require a Pro45 Hanging Ambient Microphone which can be suspended from ceilings up to 12m.

The PDA103R kit comes with everything you would need to create the hearing loop with the benefit of the amplifier being fitted with a standard 3 pin plug so no specialist installation would necessarily be required.

The system includes: PDA103 amplifier; PL1/PSU1 plugtop power supply; APM Omni-directional plated ‘outreach’ microphone; 6m Belden cable; 40m loop cable; ‘Hearing Loop Fitted’ sticker.



How does it work?

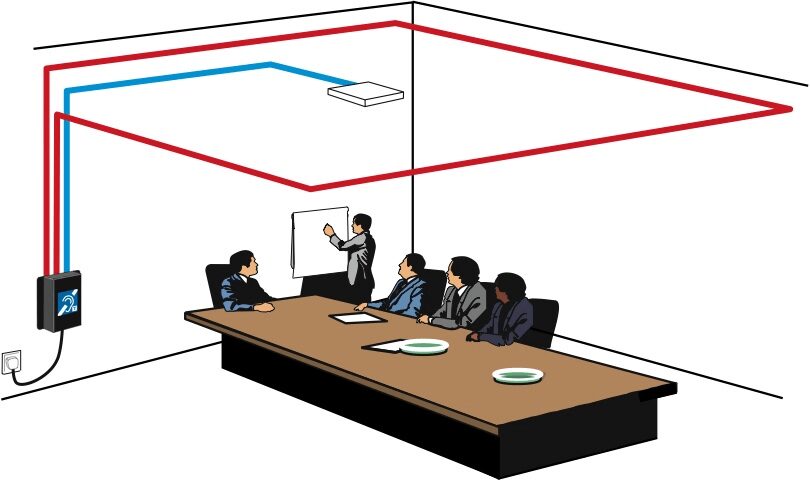

A fixed hearing loop such as the PDA103R Small Room Hearing Loop System comprises of an Amplifier and a length of loop cable that would be installed around the perimeter of the room.  This creates an electromagnetic field which would be picked up by the receiver in the hearing aid. Anyone wearing a hearing aid with the T-coil setting could connect to the hearing loop. The amplifier will connect to the APM omnidirectional Microphone positioned using the belden cable supplied, and should be positioned centrally in the room.

Key Features

  • PDA103 amplifier includes a 3.5mm microphone input, a line level input and an ‘outreach’ socket
  • Metal compensation control helps improve intelligibility in rooms with high metal content
  • Adjustable mic, line level and ‘outreach’ controls.
  • Drive (level) control allows the amplifier’s output stage to be set-up to suit the exact characteristics of the application.
  • State-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks
  • Limit, Peak, Loop Fault and Power On indicators
  • Designed to be wall-mounted using the keyholes provided
  • Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed
  • 5 year standard warranty

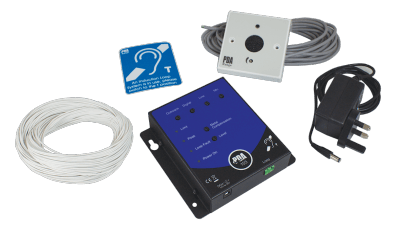

System Includes

  • PDA103 amplifier
  • PL1/PSU1 plugtop power supply
  • APM Omni-directional plated ‘outreach’ microphone
  • 6m Belden cable
  • 40m loop cable
  • ‘Hearing Loop Fitted’ sticker.

Technical Specification

Type Wall mountable. Plugtop mains lead supplied.
Coverage 50m2 approx.
Mains supply Plugtop mains lead supplied. Rated supply voltage: 110 to 240Va.c. @ 50/60Hz; Rated power consumption: 18W PSU.
Max battery size and type n/a.
Auxiliary inputs 1 x 3.5mm remote mic. socket; 1 x 3.5mm line level socket; 1 x Outreach socket.
Indicators Limit; Peak; Loop Fault; Power On.
Controls Mic; Line; Outreach; Metal Compensation (all individually adjustable) and Loop Drive (Level).
Connections Mic (3.5mm mono jack socket); Line (3.5mm stereo jack socket); Outreach (4-way pluggable screw terminal; DC in; Loop (2-way pluggable screw terminal).
Product dimensions (mm) W 135 x H 130 x D 35mm (amplifier only); W 340 x H 250 x D 73mm (kit box).
Construction & finish Black metal.
IP Rating IP40.
Weight 380g (amplifier only). 1.36kg (kit box and contents).
Operating conditions/temperature -5ºC to +40ºC. Max relative humidity: 95%.

Documentation

C-Tec Hearing Loop Guide

User Guide-PDA103C_L_R_S_Loop-Amplifier-Rev-6
