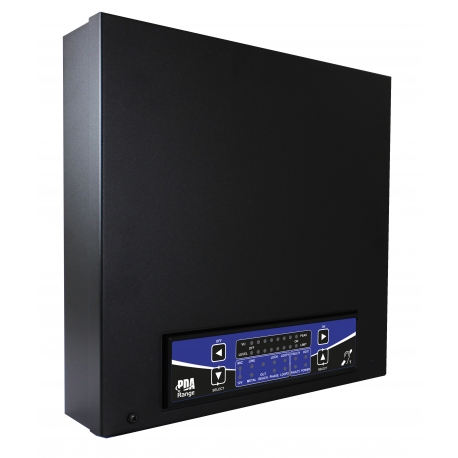

PDA5/SW Hearing Loop Amplifier – 200m2 Wall Mounted


£296.00

A new wall-mounted 4.75A hearing loop amplifier ideal for use in areas up to 200m2. With intuitive LED interface allowing simple set-up of input levels, output current, phantom power & metal compensation. Its superior audio processing and powerful CPU provide life-like speech and first class music reproduction.

SKU: PDA5/SW Categories: ,

Description

The PDA5/SW Hearing Loop Amplifier is a wall mounted constant current amplifier offering high quality speech and music reproduction.  An LED interface along with four membrane control buttons aids navigation and easy setup, whilst also giving clear indication of operation and fault status.

Covering an area up to 200m2 the PDA5/SW Hearing Loop Amplifier is an ideal solution for areas such as meeting rooms, offices, and classrooms. For larger area coverage please see the PDA7/SW (500m2) or the PDA11/SW (1000m2).



Key Features

  • A new wall-mounting 4.75A hearing loop amplifier for use in areas up to 200m2.
  • Ideal for smaller areas such as meeting rooms, offices, and classrooms.
  • Intuitive LED interface allows simple set-up of input levels, output current, phantom power & metal compensation
  • 1 XLR mic input, 1 XLR line input and 1 outreach connector.
  • Class D output stage for maximum efficiency.
  • Superior audio processing and powerful CPU provide life-like speech and first class music reproduction.
  • Fault relay & LED indicators provide clear indication of operation and fault status.
  • Industry leading dual action automatic gain control compensates for poor microphone technique.
  • Line level output for recording or daisy-chaining multiple units to cover larger areas.
  • Complies with EN62368-1 (Safety requirements for audio/video, information and communication technology equipment).
  • Designed and manufactured in the UK



Technical Specification

Type Wall-mounting (requires a permanent 5A fused spur connection to Mains).
Coverage 200m2 approx.
Mains supply 230V 50Hz.
Output 4.75A loop drive current @ 1 Ohm; Loop output volage 14V.
Max battery size and type n/a.
Auxiliary inputs 1 x XLR mic input with switchable 12V phantom power, 1 x XLR line input and 1 x Outreach connector.
Indicators LED display with level, peak and limit indicators, Mic, 12V, Line, Metal, Outreach, Lock, Loop, Fault, Hot and Power Indicators.
Controls Line Input, Microphone, 12V Phantom, Outreach, Metal Comp, Loop Drive.
Connections Mic (3-way pluggable); Line In (3-way connectors); Loop (4 way connector); Outreach (4-way pluggable connector); Line Out (3-way pluggable connector); Fault Relay (3-way pluggable connector); 230Va.c. fixed Mains connector.
Product dimensions (mm) 298 (H) x 308 (W) x 74 (D) mm.
Construction & finish Mild steel zintec, 1mm thick, black powder coated.
IP Rating IP40.
Weight 3.35kg
Operating conditions/temperature -5ºC to +40ºC. Max relative humidity: 95%.



Documentation

PDA5_SW_Datasheet_2022-01-11
