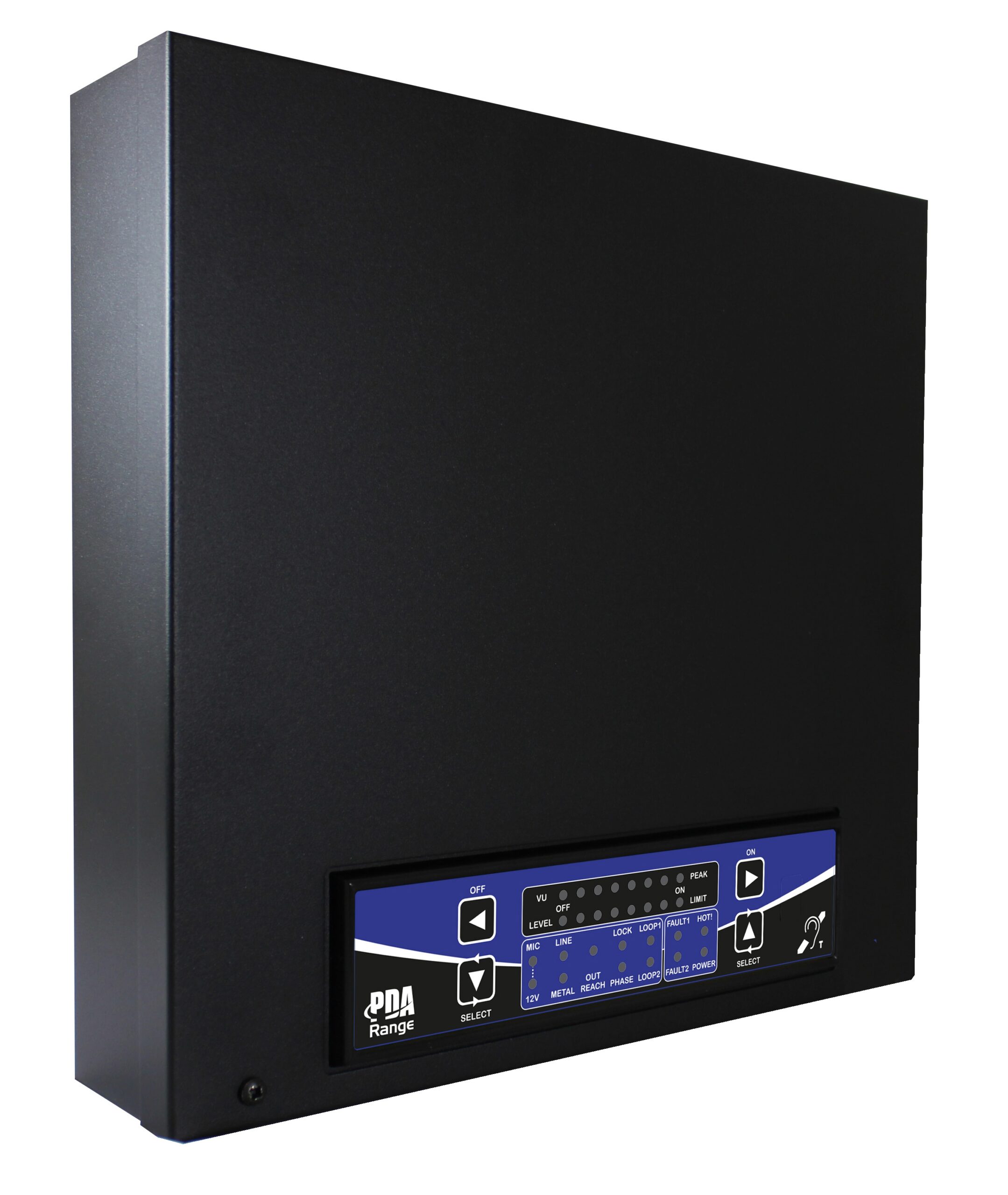

PDA7/SW Hearing Loop Amplifier – 500m2 Wall Mounted


£398.00 exl VAT

A new wall-mounted 7.25A hearing loop amplifier ideal for use in areas up to 200m2. With intuitive LED interface allowing simple set-up of input levels, output current, phantom power & metal compensation. Its superior audio processing and powerful CPU provide life-like speech and first class music reproduction.

SKU: PDA7/SW Category:

Description

The PDA7/SW Hearing Loop Amplifier is a wall mounted constant current amplifier offering high quality speech and music reproduction.  An LED interface along with four membrane control buttons aids navigation and easy setup, whilst also giving clear indication of operation and fault status.

Covering an area up to 200m2 the PDA7/SW is an ideal solution for medium sized areas such as Churches and larger meeting rooms, offices, and classrooms. For other area coverage please see the PDA5/SW (200m2) or the PDA11/SW (1000m2).

Key Features

  • A new wall-mounting 7.5A hearing loop amplifier for use in areas up to 500m2.
  • Ideal for medium sized areas such as Churches and larger meeting rooms, offices, and classrooms.
  • Intuitive LED interface allows simple set-up of input levels, output current, phantom power & metal compensation
  • 1 XLR mic input, 1 XLR line input and 1 outreach connector.
  • Class D output stage for maximum efficiency.
  • Superior audio processing and powerful CPU provide life-like speech and first class music reproduction.
  • Fault relay & LED indicators provide clear indication of operation and fault status.
  • Industry leading dual action automatic gain control compensates for poor microphone technique.
  • Line level output for recording or daisy-chaining multiple units to cover larger areas.
  • Complies with EN62368-1 (Safety requirements for audio/video, information and communication technology equipment).
  • Designed and manufactured in the UK



Technical Specification

Type Wall Mounting (requires a permanent 5A fused spur connection to Mains).
Coverage 500m2 approx.
Mains supply 230V 50Hz.
Output  7.5A loop drive current @ 1 Ohm; Loop output volage 14V.
Max battery size and type n/a.
Auxiliary inputs 1 x XLR mic input with switchable 12V phantom power, 1 x XLR line input, 1 x Outreach connector
Indicators LED display with level, peak and limit indicators, Mic, 12V, Line, Metal, Outreach, Lock, Loop, Fault, Hot and Power Indicators.
Controls Line Input, Microphone, 12V Phantom, Outreach, Metal Comp, Loop Drive
Connections Mic (3-pin XLR); Line In (3-pin XLR); Loop (4 way binding post); Outreach (4-way pluggable connector); Line Out (3-way pluggable connector); Fault Relay (3-way pluggable connector); 230Va.c. fixed Mains connector.
Product dimensions (mm) 298 (H) x 308 (W) x 74 (D) mm.
Construction & finish Mild steel zintec, 1mm thick, black powder coated
IP Rating IP40.
Weight 3.35kg
Operating conditions/temperature -5ºC to +40ºC. Max relative humidity: 95%.
