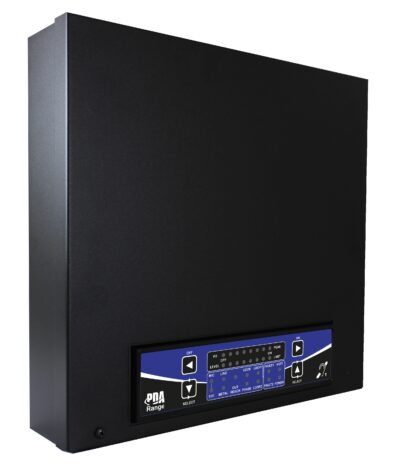

PDA7/DW Hearing Loop Amplifier – 500m2 wall-mounted Phase-Array


£646.00 exl VAT

A new wall mounted, phase shifting, 2 x 5A hearing loop amplifier ideal for use in areas up to 500m2. With intuitive LED interface allowing simple set-up of input levels, output current, phantom power & metal compensation. Its superior audio processing and powerful CPU provide life-like speech and first class music reproduction.

  • A wall mounted 2 x 5A phase-array hearing loop amplifier for use in areas up to 500m2.
  • Ideal for medium areas such as churches or larger meeting rooms, offices and classrooms
  • Intuitive LED interface allows simple set-up of input levels, output current, phantom power and metal compensation.
  • 1 XLR mic input, 1 XLR line input and 1 outreach connector.
  • Anti-tamper lock function.
  • Class D output stage for maximum efficiency.
  • Superior audio processing and powerful CPU provide life-like speech and first class music reproduction.
  • Fault relay & LED indicators provide clear indication of operation and fault status.
  • Industry leading dual action automatic gain control compensates for poor microphone technique.
  • Line level output for recording or daisy-chaining multiple units to cover larger areas.
  • Designed and manufactured in the UK
  • 5 year standard warranty



In stock

SKU: PDA7/DD-1 Category:

Description

The PDA7/DW Hearing Loop Amplifier is a constant current amplifier featuring phase-shifting technology to give consistent coverage with low chance of dead spots, and minimal overspill. An LED interface along with four membrane control buttons aids navigation and easy setup, whilst also giving clear indication of operation and fault status.

Covering an area up to 500m2 the PDA7/DW is an ideal solution for medium sized areas such as churches or larger meeting rooms, offices and classrooms.  For other area coverage please see the PDA5/DD (200m2) or the PDA11/DD (1000m2).



Key Features

  • A new wall mounted 2 x 5A phase-array hearing loop amplifier for use in areas up to 500m2.
  • Ideal for medium areas such as churches or larger meeting rooms, offices and classrooms
  • Intuitive LED interface allows simple set-up of input levels, output current, phantom power and metal compensation.
  • 1 XLR mic input, 1 XLR line input and 1 outreach connector.
  • Anti-tamper lock function.
  • Class D output stage for maximum efficiency.
  • Superior audio processing and powerful CPU provide life-like speech and first class music reproduction.
  • Fault relay & LED indicators provide clear indication of operation and fault status.
  • Industry leading dual action automatic gain control compensates for poor microphone technique.
  • Line level output for recording or daisy-chaining multiple units to cover larger areas.
  • Designed and manufactured in the UK
  • 5 year standard warranty

Technical Specification

Documentation

PDA Range_loop amps_insts_DAU0000110_rev3 (3)
