DL50/K Domestic Hearing Loop Amplifier Kit 50m2


£105.00

Designed to be easy to install, user friendly and offers excellent audio performance.  The ideal solution for bedrooms, living rooms, TV lounges, and other domestic applications.

4991 in stock

SKU: DL50/K Category:

Description

The DL50/K Domestic Hearing Loop Amplifier Kit requires no specialist audio experience to install, has easy to use controls and offers excellent audio performance.  Covering up to 50m2 it is the ideal solution for the domestic home in areas such as the bedroom, living rooms, TV lounges etc.

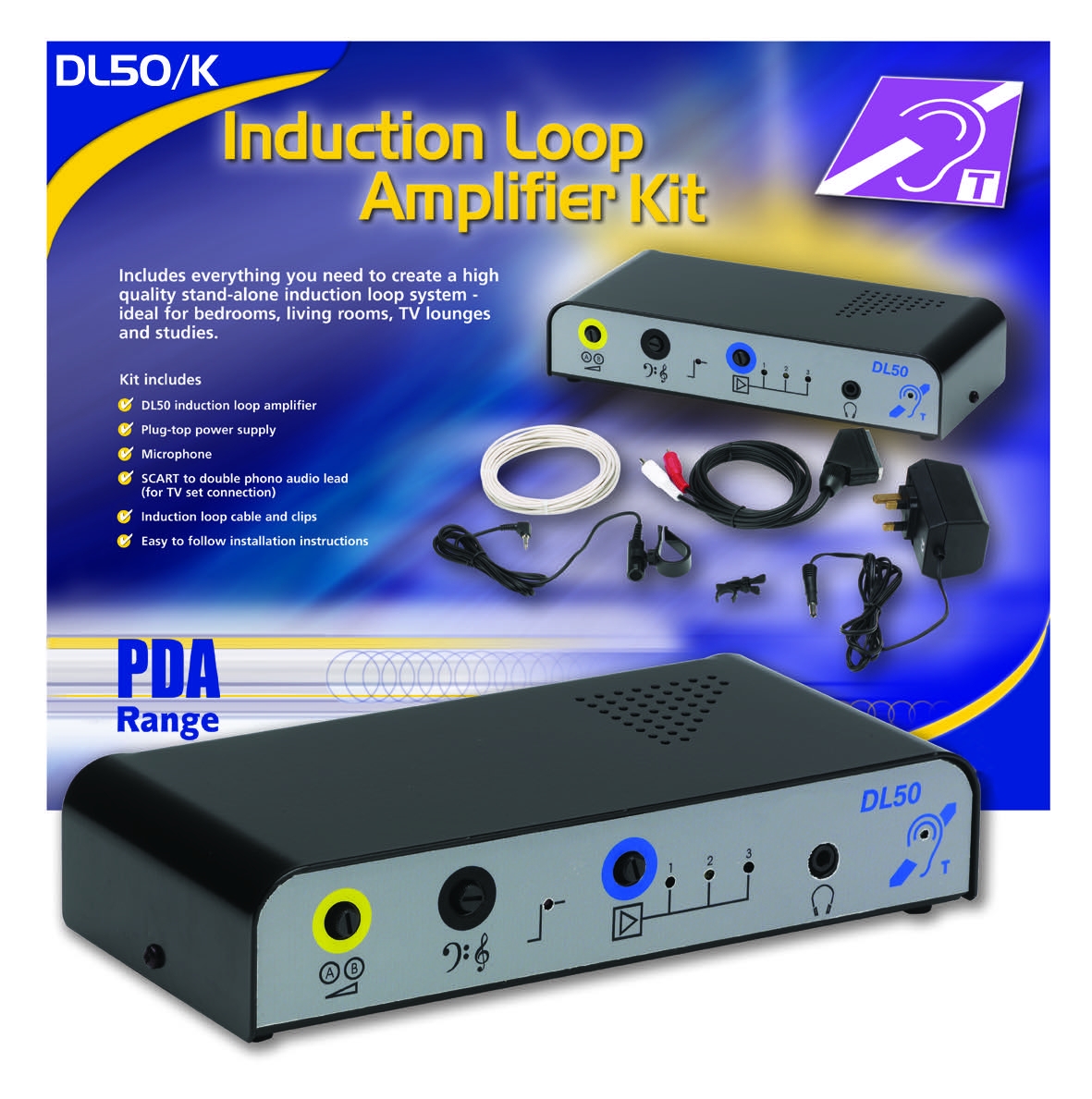

Kit Includes

  • DL50 amplifier
  • Plug top power supply
  • Loop cable
  • SCART to double phono lead
  • AMT microphone
  • AFILS fitted sticker



Key Features

  • Free-standing – ideal for bedrooms, living rooms, TV lounges, studies and other domestic applications.
  • Simple to adjust and tamper-resistant drive, level, tone and microphone priority controls
  • Input peak, output current, signal present and power on LEDs.
  • Alert tone input for doorbells, fire alarms, security systems, etc.
  • Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed.
  • 5 year warranty
  • Headphone socket for simple set up
  • Made in the UK



Technical Specification

Type Free-standing. Plugtop mains lead supplied.
Coverage 50m2 approx. (note that loops over 16m2 may require two turns of loop cable).
Mains supply Plugtop mains lead supplied.
Max battery size and type n/a.
Auxiliary inputs 2 x 3.5mm remote mic. socket; 1 x dual phono (line) socket; Alert input
Indicators Input level; loop current meter; power on.
Controls Input level; loop drive, tone, microphone priority
Product dimensions (mm) W 185 x H 40 x D 85mm (amplifier only);
Construction & finish Black metal; grey label.
IP Rating IP20.
Weight 550g
Operating conditions/temperature -5ºC to +40ºC. Max relative humidity: 95%.



Documentation

DL50_K_Datasheet_2021-02-09



More Information

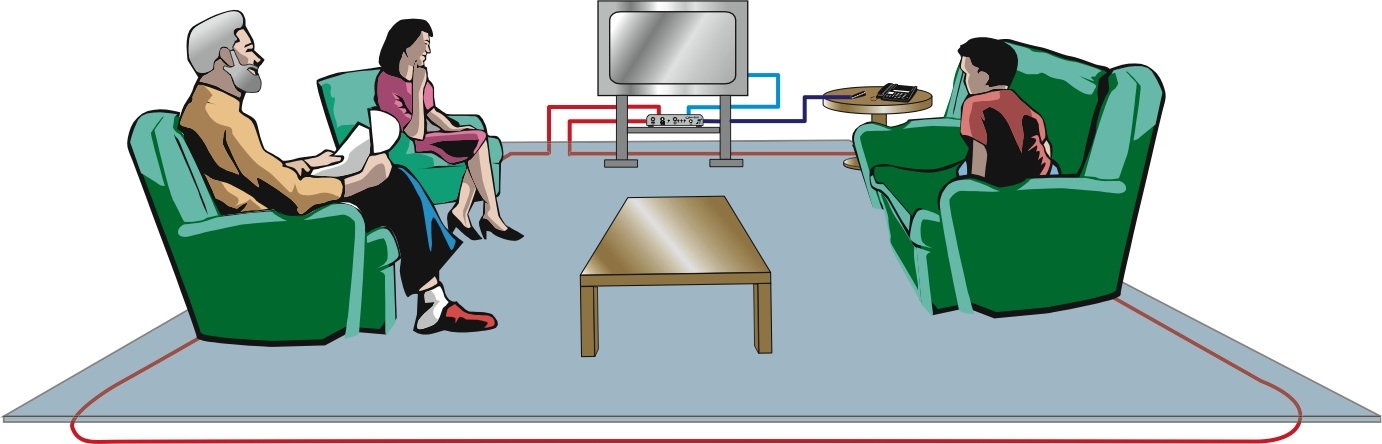

Hearing loop systems allow hearing impaired people to hear more clearly. Most hearing aids have a ‘T’ or ‘MT’ switch which allows them to pick up the electromagnetic field generated by a hearing loop system. The hearing aid converts this signal into a sound suited to its user’s specific hearing requirements.

Any person with a hearing aid positioned within or near the loop can hear the loop signal by switching their hearing aid to the correct position, allowing them to participate more effectively in general conversation, ordering goods or services, listening to public performances, etc.
